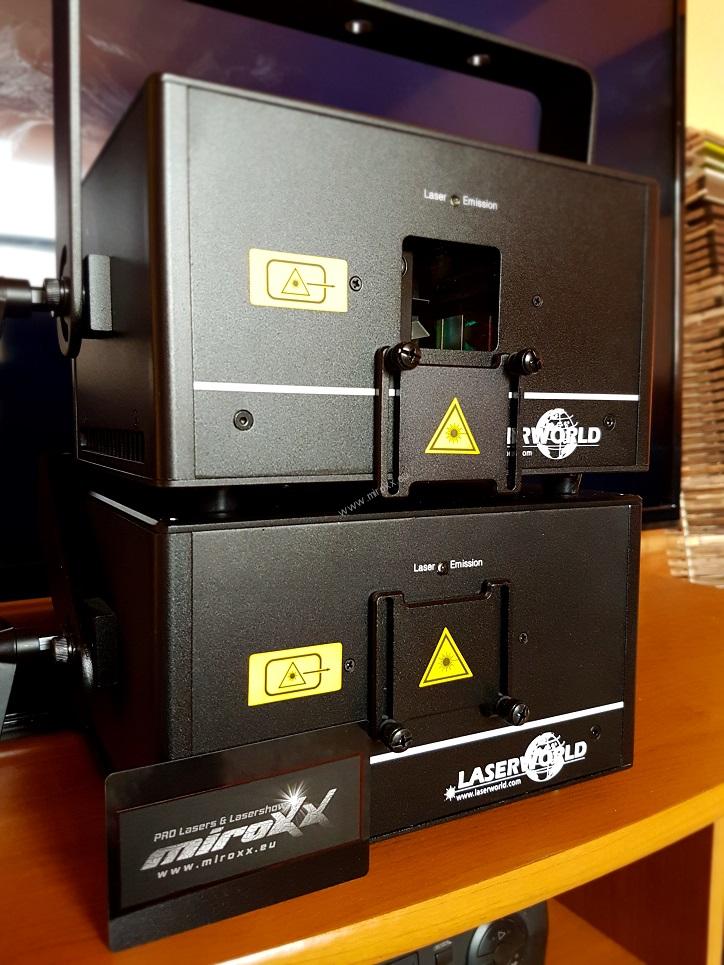

Laserworld DS1000RGB s integrovaným hardwarom Shownet /vykresľovanie grafiky na vzdialenosť max. 40 metrov - v prípade vačšej vzdialenosti odporúčame zakúpiť výkonnejší laser Laserworld DS2000 RGB /
- cena zahŕňa profi laserový projektor - integrovaný hardware na ovládanie lasera a software na vytváranie vlastných textov, obrázkov a rôznej grafiky + zdarma Vám naprogramujeme Vaše logo spoločnosti /2D/
- laser je možné ovládať cez PC alebo je možné uložiť grafiku do lasera cez ethernet a pustiť to priamo v lasery.
Pre viac info nás neváhajte kontaktovať.
The Laserworld Diode Series units come with diode-only laser sources ("Pure Diode") and thus have great beam specifications with beautiful analog color modulation.
The DS-1000RGB units can be controlled over ILDA and have a bult-in memory with preset patterns, that can be easily triggered through DMX. They can also be operated in automatic and sound-to-light mode.
The Laserworld DS-1000RGB (ShowNET) comes with integrated ShowNET network interface and free laser show software. Details in the box below.
Beginners as well as professionals use the Laserworld Diode Series units, as they are easy to use, versatile in their features and very compact and lightweight.
The Laserworld DS-1000RGB comes with 180 mW red at 638 nm and uses green diodes at 520 nm (120 mW). The blue diode has 700 mW power at 450 nm.
Beam specifications are at great 3 mm/1.0 mrad full angle and scanning can go as fast as 30 kpps@8°, whereas the scanners can scan a maximum angle of 45°.
With integrated and switchable scan fail safety.
The whole projector is built with Sealed Housing technology and thus maintenance intervals can be kept very low.
+ Integrated ShowNET incl. free laser show software
The Laserworld DS-1000RGB features an integrated ShowNET network interface with free laser control software included!
Start with your own professional laser show thanks to the intuitive Showeditor laser show software which comes with every new Laserworld DS-1000RGB (ShowNET) for free. The Showcontroller software is supported as well and can be purchased additionally.
The integrated ShowNET allows for direct input through ILDA and LAN. Besides DMX, it is possible to trigger single frames via ArtNET. You can play custom frames and shows from an integrated SD card (included in delivery) – even in sound-to-light and stand-alone mode!
There are two different DMX modes:
(1) DJ Mode with the most used features for beginners. Only a few DMX channels are used for a quick and easy access to the most important adjustments directly at the laser system.
(2) Professional Mode with all DMX features especially for users with a DMX console. All adjustments can be triggered and allow for full control of the professional laser show.
The integrated ShowNET works as DAC (digital to analog converter) and enables ILDA streaming.
Nebol zatiaľ pridaný žiadny názor. Pridajte svoj názor alebo dotaz ako prvý. |
Total Power typical:: | 900mW | ||
Power Green:: | >120mW/520nm | ||
Power Blue:: | >700mW/450nm | ||
Beam Specifications (full angle):: | ca. 3mm/1.0mrad | ||
Laser Sources:: | diode | ||
Laser Class:: | 4 | ||
Operation Modes:: | ILDA, DMX, LAN, ArtNet, integrated SD card, stand-alone, sound-to-light | ||
Scanner:: | 30kpps@8° | ||
Scan Angle max.:: | 40° | ||
Accessories:: | power cable, manual, keys, interlock, allen key | ||
Power Supply:: | 85V - 250V AC 50/60Hz | ||
Power Consumption:: | 60 W | ||
Dimensions:: | 200x140x110 mm | ||
Weight:: | 2,8 Kg | ||
Power Red:: | >180mW/638nm | ||
Basic patterns:: | over 120 (layers, tunnels, fences, waves, etc.) |
